Smart Glasses Epson Moverio BT-2200

Moverio Pro BT-2200 Smart Headset

Zoom In
Moverio Pro BT-2200 Smart Headset
Moverio Pro BT-2200 Smart Headset
Moverio Pro BT-2200 Smart Headset
Moverio Pro BT-2200 Smart Headset
Moverio Pro BT-2200 Smart Headset
Moverio Pro BT-2200 Smart Headset

Helmet compatible, durable smart headset built for industrial applications.

The Moverio Pro BT-2200 smart headset features key technologies designed for the industrial workplace, including use with most safety helmets. Ideal for enterprise applications, this durable headset features safety-glass compliance and a dust-resistant design. With built-in voice commands, it supports hands-free interfaces with head tracking and gesture control. Its high-resolution front-facing camera and remote visual support makes it easy to help with complex tasks, while hot swappable batteries ensure all-day usage without interruption. With built-in GPS and highly accurate sensors, the BT-2200 has all you need to change how work gets done.



Find Accessories Contact Us
  • Ready for Industrial Use — unique design allows it to be worn with most front-brim safety helmets
  • Built for Tough Environments — ANSI Z87.1 safety-glass compliant, dust and water resistant (IP54 rating), and capable of withstanding a 1.2 m (3.94') drop
  • Hands-Free Operation — wearable display with built-in voice commands; supports interfaces with head tracking and gesture control
  • Remote Visual Support — high-resolution 5MP front-facing camera enables workers to share their point of view for help on complex tasks
  • Long Operating Time — hot swappable batteries allow for all-day usage without interruption
  • Sensors for outdoor/indoor positioning — built-in GPS and Epson IMU (inertia measurement unit); high-precision sensor with a uniquely low margin of error
  • Simple operation — control keys with intuitive shapes — can be used when wearing protection gloves; built-in ambient light sensor to automatically adjust display brightness
  • Enhanced Connectivity — dual band (2.4 & 5GHz) wireless connectivity, Bluetooth® 3.0 and select BLE protocols

What's in the box:

Battery pack
AC Adapter with cable
Shade (Dark) x 1 Protective Shield (Clear)
Lens holder
Mono earphones w/Mic Controller holder
Arm band
Reel clip
Hexagonal wrench and Screw
User Manual
Helmet holder clips x 4pcs

Wearable Device Details:

Model Type: See-Through Binocular Smart HeadsetBattery Life: Approx. 4 hrs (with hot-swappable feature)Battery Type: Lithium-ion batteries 1240 mAh / 7.4 V (x 2 cells)Water Proof: Headset and Controller:
Water and dust resistant (IP54)Dimensions Headset: 206 mm x 109 mm x 96 mm (without the head band)Dimensions Controller: 70 mm x 35.3 mm x 157 mmWeight Headset: 270 g (without cables)Weight Controller: 265 g (without batteries, 1 battery is approx. 50 g)Operating Temperature: 0 to 40 °C, 20 to 80 % humidity (no condensation)Storage Temperature: -10 °C to 60 °C, 10 % to 90 % humidity (no condensation)Power Supply Voltage Controller: 11 V DC, (1.64 A) via AC adapterPower Supply Voltage AC Adapter: 100 to 240 V AC, 50 to 60 Hz, 0.4 A

Optical:

Display Device Type: HTPS LCD (High Temperature Poly-Silicon Liquid Crystal Display)Driving Method: Polysilicon Thin Film Transistor Active MatrixRefresh Rate: 60 HzField of View: 23° (Diagonal)Screen Size (Projected Distance): 40-inch at 2.5 m, 320-inch at 20 mDisplay Size: 0.42 inch wide panel (16:9)Pixel Number: 518,400 pixels (960 x 540)

Android Platform:

OS Version: Android 4.0.4Pre-Installed Applications: BLEBeacon, Browser, CameraTest, Downloads, FMP_PXP, Gallery, Search, SelfDiagnosis, Settings, SEViewer, VoiceCommand

Sensors:

Camera - Image Capturing: 5MP (Still image: 2596 x 1948, Video: 1920 x 1080)Camera - Depth Sensing: 640 x 480 (Approx. Range: 30-100cm)GPS: Yes, in HeadsetCompass: Yes, 3-axis in ControllerGyroscope: Yes, 3-axis in Heaset, IMU (+/- 450 deg/sec)Accelometer: Yes, 3-axis in Headset, IMU (+/- 6 G)Ambient Light Sensor: Yes (0 - 65,528 lux)

CPU and Memory:

CPU: TI OMAP4460RAM: 1 GBInternal Storage: 8 GB

Supported File Formats:

Video: MP4 (MPEG4 + AAC), MPEG2 (H.264 + AAC)Picture: JPEG, PNG, BMP, GIFAudio: WAV, MP3, AAC3D Supports: Side by Side

Sound Output:

Maximum Audio Output Level: 150 mV

Connectivity:

USB Interface: Micro USB type B, USB 2.0 (device / host)Network: IEEE 802.11 a/b/g/n with WiFi certified
Modulation: ODFM, DSSSBluetooth: Bluetooth 3.0 (HSP / A2DP / HID / OPP / SPP / AVRCP)
Bluetooth 4.0 LE, (PXP / FMP)
*Can be used with Epson specified beacon device.SD Card Slot: MicroSD (max. 2GB) / MicroSDHC (max. 32 GB)Audio Jack: 3.5 mm 4 pole mini-jack, CTIA type
See Full Specs Hide Full Specs
Print All Specs

Notes:

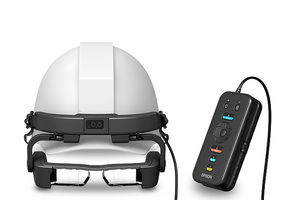

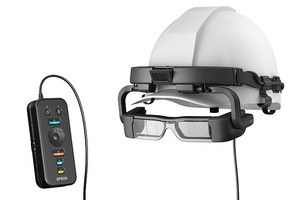

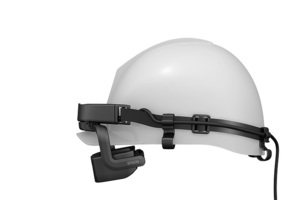

Safety helmet shown in image is for illustrative purpose only.
