Projectors LightScene Projectors Epson EB-800F

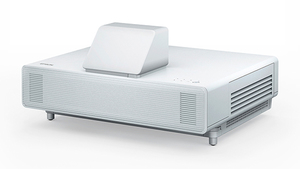

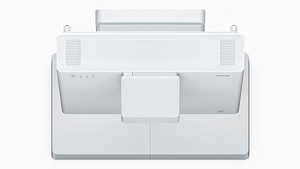

Epson EB-800F Ultra-short Throw Full HD Laser Projector

Zoom In
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector
Epson EB-800F Ultra-short Throw Full HD Laser Projector

Create Your Own Customer Experience.

Wow your customers and strengthen marketing messages with Epson EB-800F Full HD1 ultra-short throw laser projector! Create stunning video content easily and instantly project your information wirelessly to your audience. EB-800 series projectors’ laser light source allows it to be placed in any orientation, even in tight spaces, and are the ideal companion for your digital signage needs.



Where to Buy
Find Accessories Support

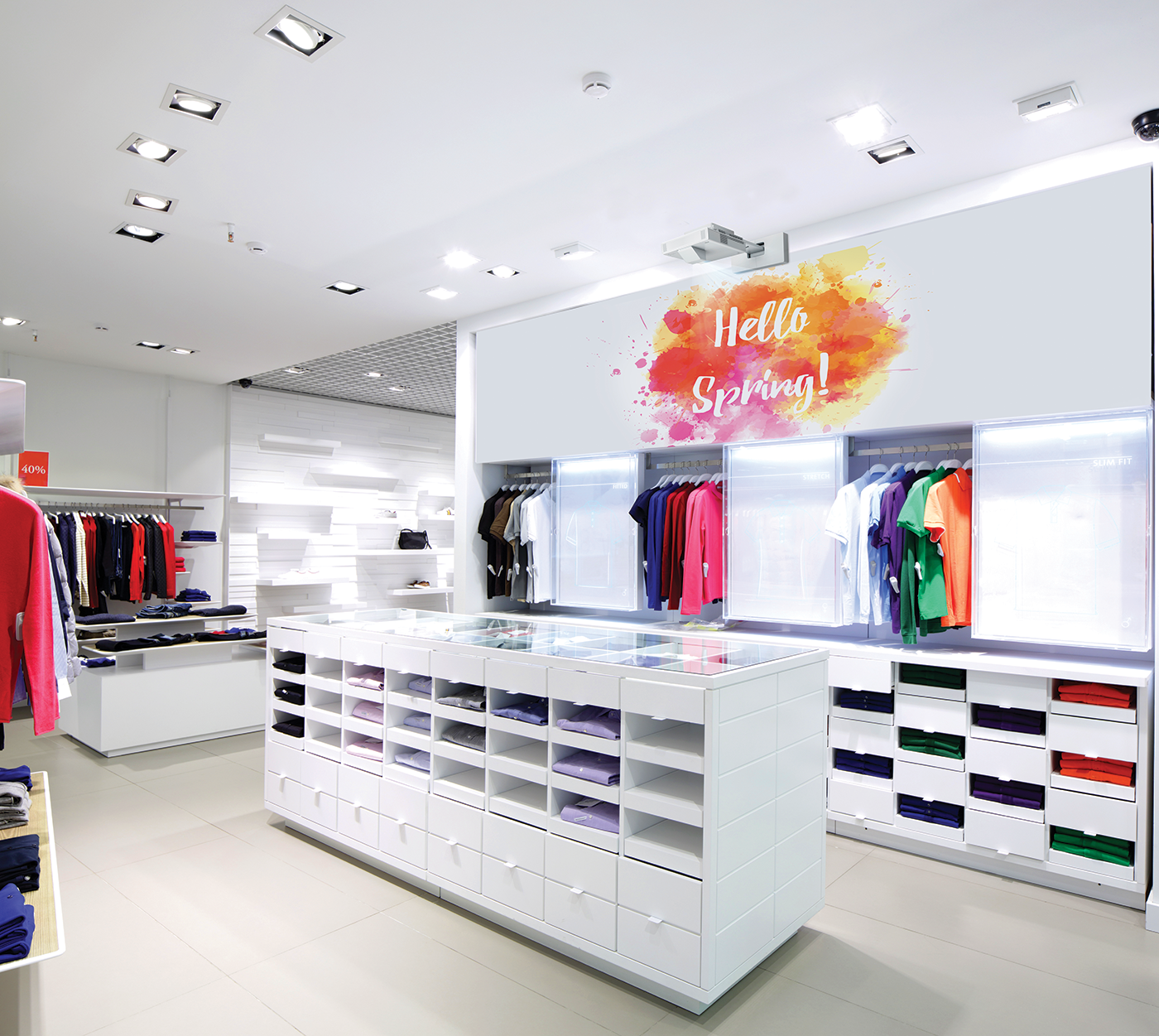

Remarkable Image Quality
With an optimum brightness of 5,000 lumens and dynamic contrast of over 5,000,000:1, be assured that your images will be vivid and attention-grabbing even under a variety of ambient lightings. The ultra-short-throw laser projector is able to project beautiful and sharp images even in the tightest retail spaces up to a maximum of 130-inch.

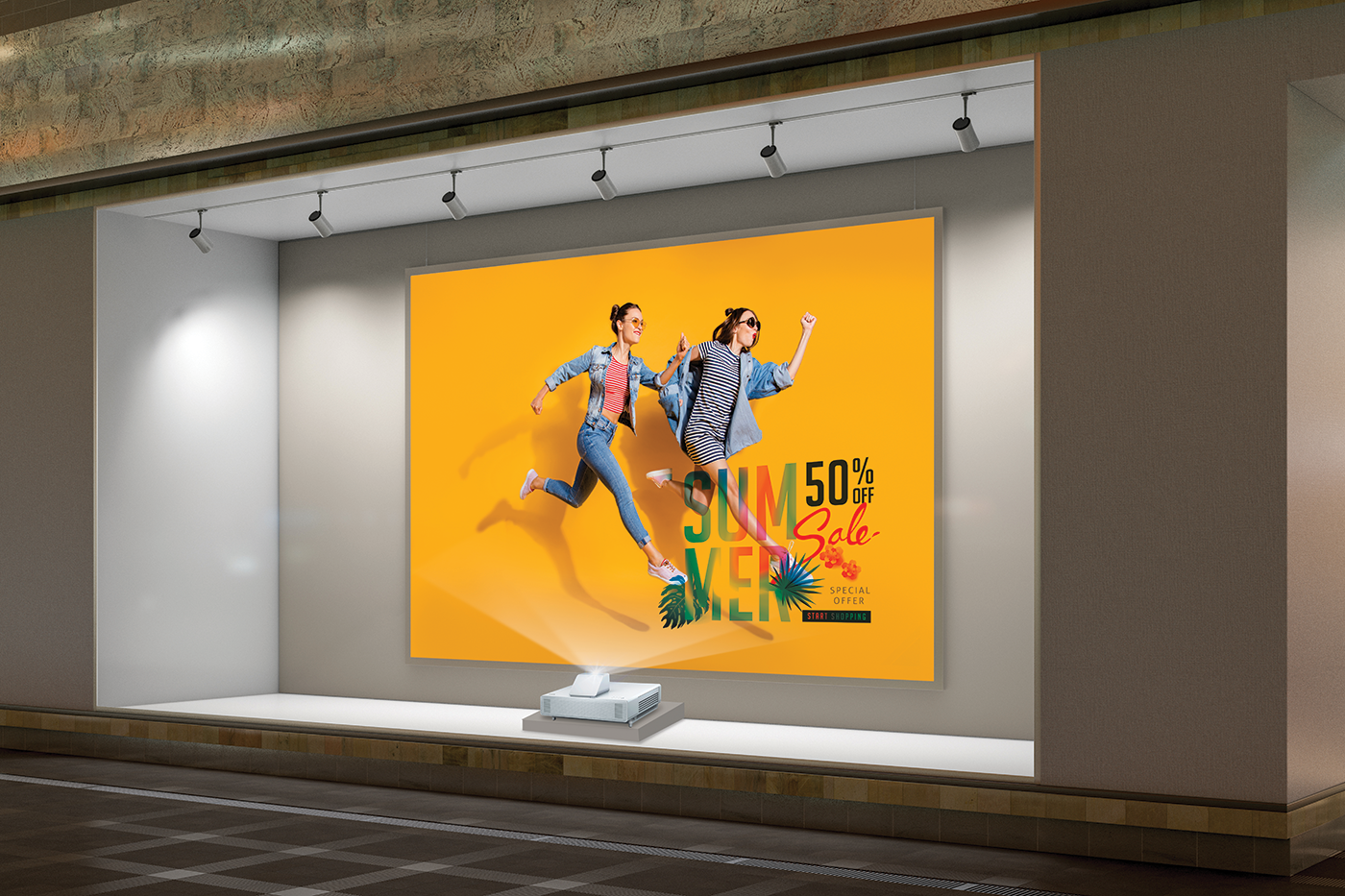

Multi-directional Projection
Thanks to its laser light source, EB-800 series projectors can rotate 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness and quality. An ideal companion to businesses that require vivid projections on a variety of surfaces such as floors and ceilings.

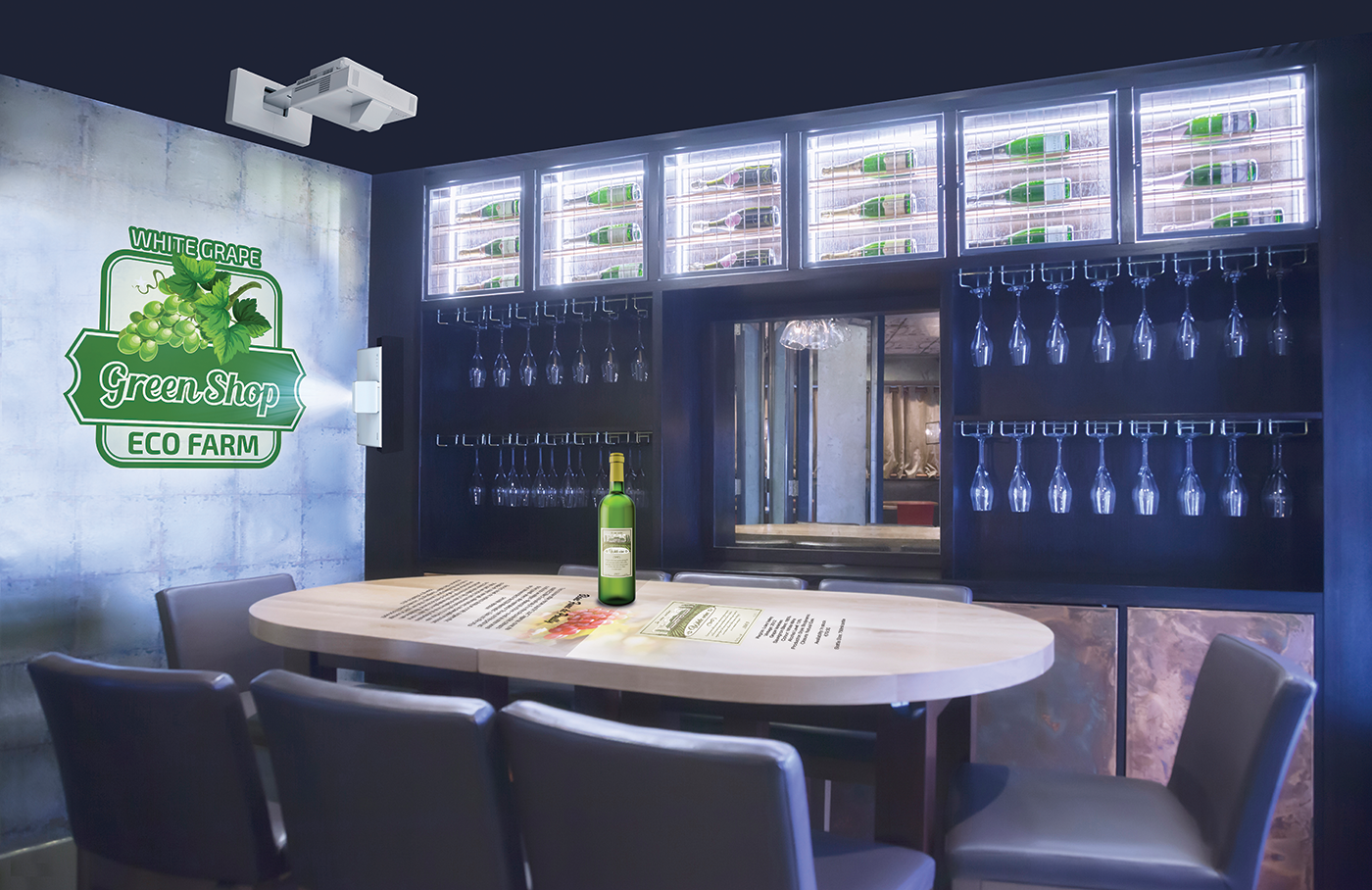

Flexible Projection Image
The black background in images will not be projected on surface, allowing non-rectangular images. This allows flexibility and great creativity in creating content. Thus, this gives users the ability to form sleek and eye-catching designs, without being confined to a rectangular image.

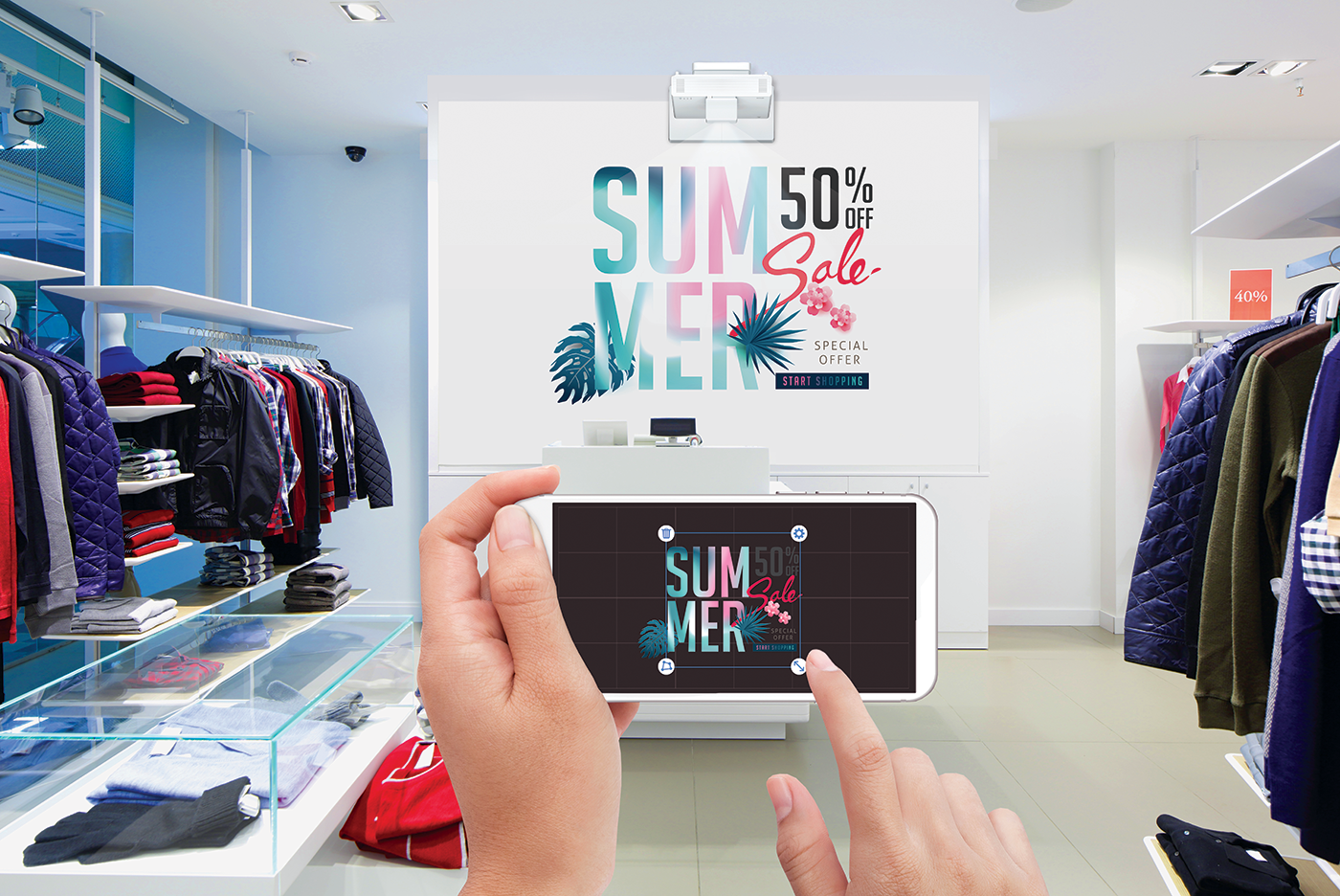

Do-It-Yourself Content
Create video and image content with Epson Creative Projection App*. With over 40 high quality templates to choose from, customise stunning and creative content effortlessly and project them wirelessly to capture your audience’s attention. What’s more, the app is totally free and easily downloadable from Apple App Store!

*Epson Creative Projection App is currently available on iOS only.





What's in the box:

Supplied Accessories
Power Cable: 1.8m x 1
Remote Control with 2x AA Battery
Cable cover
Foot for main unit
Lens cap

Optional Accessories

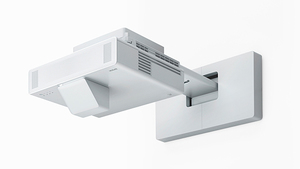

Setting Plate: ELPMB62
Air Filter: ELPAF56
Wireless LAN unit: ELPAP11

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

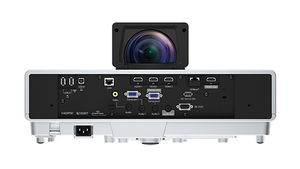

Connectivity:

Network: Wireless LAN: 1 x USB Type A (In common with Memory I/O)
Wired LAN: RJ45 x 1Analog Input: Composite: RCA x 1 (Yellow)
D-Sub 15Pin: 2Digital Input: HDMI: 3 (HDCP2.3)
HDBaseT: 1 (HDCP2.3)Audio Input: Stereo Mini Jack: 3Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-sub 9 pin x 1Others: USB Type B: 1 (for USB Display, mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
USB Type A: 2 (for Saving and Reading* data via USB Memory, USB Document Camera)

Contrast Ratio:

Contrast Ratio: Over 5,000,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode : Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*2, IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)Supported Connection Mode: Infrastructure, Access Point (Wi-Fi Direct)

Screen Size (Projected Distance):

Zoom : Wide: 65” – 130” [39.2 – 80.3 cm] @ 16:9
61” – 120” [39.5 – 79.6 cm] @ 16:6Zoom : Tele: 48” – 96” [39.2 – 80.3 cm] @ 16:9Standard Size: 80” [48.7 cm]

Geometric Correction:

Vertical/Horizontal Keystone: ±3° / ±3°Quick Corner: Yes

Operating Temperature:

Single Use: 0 - 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation]Multi-projection Use: 0 - 40 °C <41 - 104 °F> [20% – 80% Humidity, No Condensation]

Start-Up Period:

Start-Up Period: Less than 8 - 10 seconds (Epson Logo), Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 8W x 8W [Stereo]

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 458 x 209.5 x 375 mm

Weight:

Weight: Approx. 9.4 kg (Without Cable Cover)
Approx. 9.7 kg (With Cable Cover)

Air Filter:

Maintenance Cycle: 20,000 hours*3

Fan Noise:

Normal / Quiet: 36dB / 27dB

Projectors Facets:

Resolution, Projectors Facets: 1080pContrast Ratio, Projectors Facets: Over 5,000,000:1Inputs & Interfaces, Projectors Facets: HDMI
Epson Creative Projection App
RJ-45 & RS-232
USB Plug and PlayBrightness Range Lumens, Projectors Facets: 4001Short Throw / Ultra Short Throw, Projectors Facets: Ultra Short ThrowFeatures, Projectors Facets: Quick Corner
Ultra Short Throw
Edge BlendingLaser / Lamp, Projectors Facets: Laser

Specifications of Main Parts:

LCD: Native Resolution: Full HD (1080p)
Size: 0.62” (C2Fine)Light Source: Type: Laser Diode
Life (Normal / Extended): 20,000 / 30,000 hoursProjection Lens: Type: Focus (Manual) / No Optical Zoom
F-Number: 1.50
Focal Length: 3.90 mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.27 – 0.37 (Wide to Tele)

Power Consumption (220 - 240V):

Laser Diode ON (Normal / Extended): 366W / 262WNetworked Standby / Energy Saving: 2.0W / 0.5 W
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Pixel shifting technology achieves Full HD resolution on screen.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.

* Including Firmware Update and Copy OSD Settings.
