Epson EB-X51 XGA 3LCD Projector

Larger, Sharper, More Impact Viewing Experience.

Create engaging classroom displays with the dynamic EB-X51 projector. Offering advanced 3LCD technology, this ultra bright projector delivers eye-catching, 3,800-lumen displays with native XGA resolution. Designed to enhance in-class collaboration, the EB-X51 projects from smart devices and laptops, and features a built-in Moderator function that allows up to 50 users to connect to the display simultaneously 3(using iprojection). Built to last, this durable projector provides a long lamp life of up to 12,000 hours in ECO Mode, plus HDMI connectivity and convenient positioning flexibility for easy projection from anywhere in the classroom.

3,800 lumens of color and white brightness¹
Native XGA resolution and 4:3 performance
Long lamp life up to 12,000 hours in ECO Mode
Built-in Moderator function³ for easy sharing using iProjection
Advanced network connectivity

Where to Buy

Find Accessories Support

Overview

Higher resolution quality

Bigger projections
When you are looking for bigger display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.

Split Screen Function for Wired / Non-wired Devices
A split screen function enables the simultaneous projection of two images from separate devices through both wired and wireless connections on a single screen, eliminating the need for a second projector. Classroom lessons and business meetings can now be more engaging by connecting the projector with a document camera and a PC or tablet.

Various Interfaces

Epson business projectors support a wide range of connectivity options including HDMI, VGA, and USB. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

Specifications

Power:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Operating Temperature:

Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Screen Size (Projected Distance):

Standard Size: Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]

Brightness¹:

White Light Output (Normal/Eco): 3,800 lmColour Light Output: 3,800 lm

Contrast Ratio:

Contrast Ratio: 16,000:1

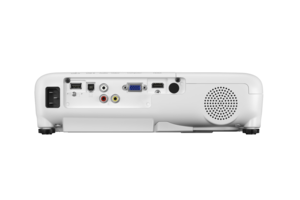

Connectivity:

USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network: Wireless: Optional (ELPAP11) Analog Input: Composite: 1 RCA
D-Sub 15pin: 1Digital Input: HDMI: 1 (MHL not supported)Audio Input: 2 RCA: 1

Operating Altitude:

Operating Altitude: 0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Air Filter:

Type: High Efficiency FilterMaintenance Cycle: 6,000 / 12,000 hours^*3

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 302 x 77 x 234 mm

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)Quick Corner: Yes

Direct Power On/Off:

Direct Power On/Off: Yes

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 28dB

Specifications of Main Parts:

LCD: Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)Light Source: Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio: 4:3Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.72
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio: 1.48 – 1.77 (Wide to Tele)

Optional Wireless Specifications:

Supported Speed for Each Mode : IEEE 802.11b (2.4GHz): 11 Mbps^*2
IEEE 802.11g (2.4GHz): 54 Mbps^*2
IEEE 802.11n (2.4GHz): 72.2 Mbps^*2
IEEE 802.11a (5GHz): 54Mbps^*2
IEEE 802.11n (5GHz): 150 Mbps^*2Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Weight:

Weight: Approx. 2.5 kg

Projectors Facets:

Resolution, Projectors Facets: XGAContrast Ratio, Projectors Facets: 16,000:1Brightness Range Lumens, Projectors Facets: 2000Features, Projectors Facets: Wifi
Quick CornerLaser / Lamp, Projectors Facets: Lamp

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Notes:

^*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

^*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

^*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3 ). Based on the Epson’s in-house test results
