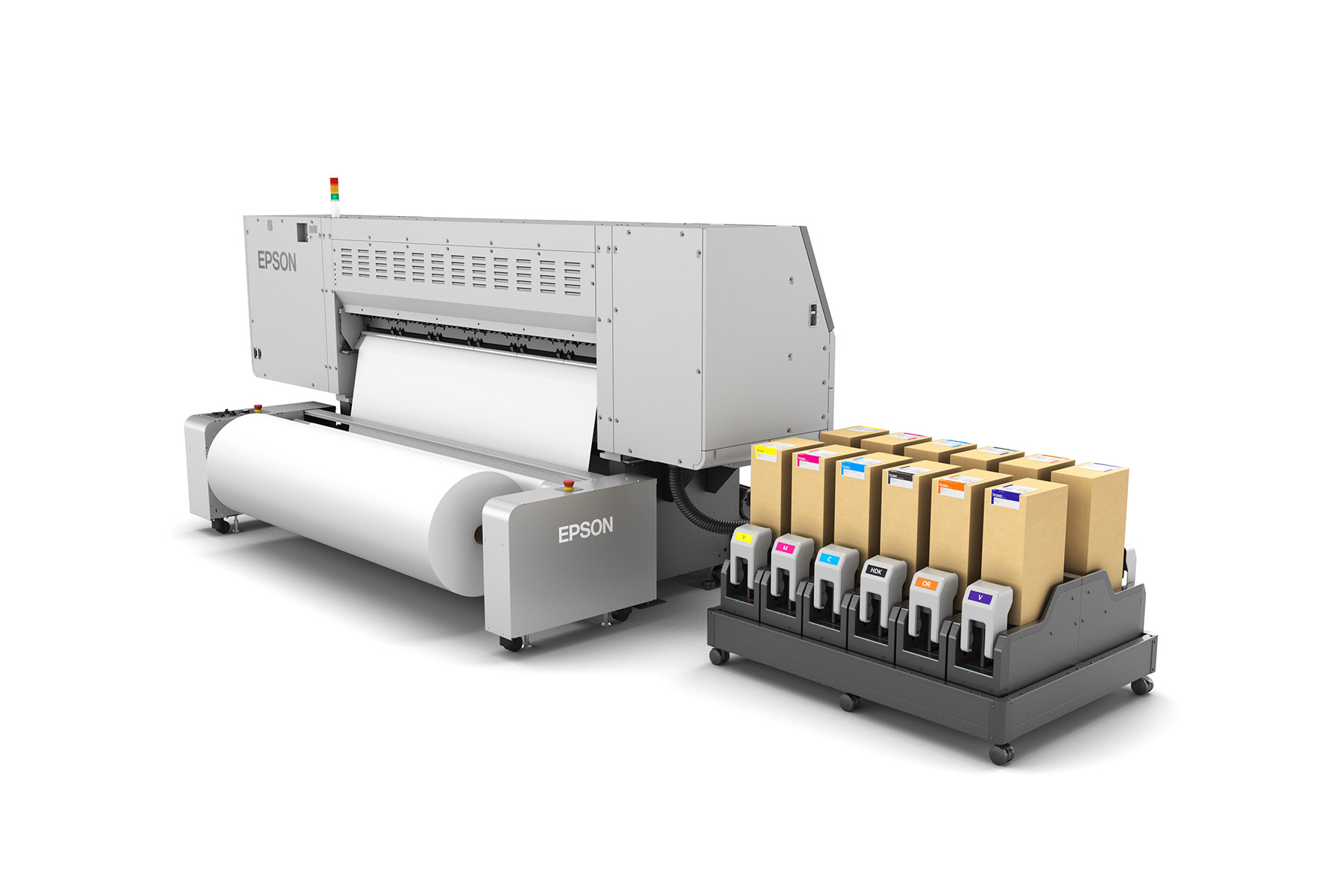

Epson SureColor SC-F11030

Big On Impact, Bigger On Quality.

Combining efficiency, speed, accuracy and reliability into one, The SureColor SC-F11030 is the most advanced dye sublimation printer Epson has to offer. Experience next level of efficiency with our PrecisionCore Micro TFP printheads, an integrated dryer, and the newly added jumbo roll option. Ensure minimum printer downtime with our Epson Cloud Solution PORT software and our user self-repair function. Realise your business's true potential today!

  • 4 PrecisionCore Micro TFP printheads
  • Built-in dryer unit to enable high-speed printing
  • Bulk Ink Supply System with 2 sets of 10L ink packs to enable continuous high-volume printing
  • Advanced Auto Tension Control system to ensure high paper feeding accuracy
  • User Self-repair feature to minimize printer downtime



Sales Reference Guide

Enhanced Level of Productivity

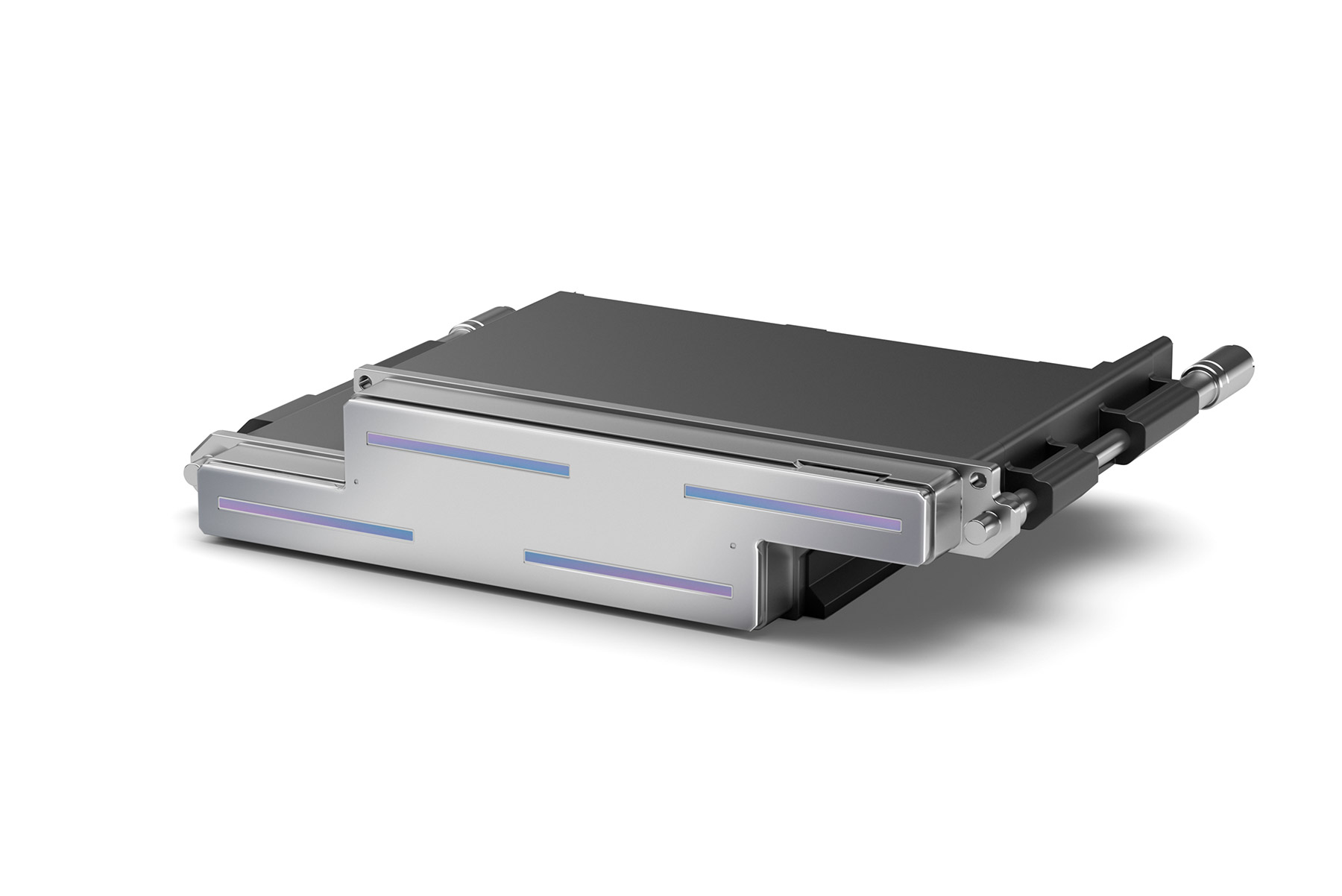

Micro TFP printheads
PrecisionCore represents Epson’s TFP technology, created by merging advanced key component technologies and high-precision MEMS fabrication processes. Epson’s SC-F11030 integrates six 4.7-inch bandwidth PrecisionCore Micro TFP Printheads that allows for a larger printing area and a maximum print speed of 255 sqm/h.

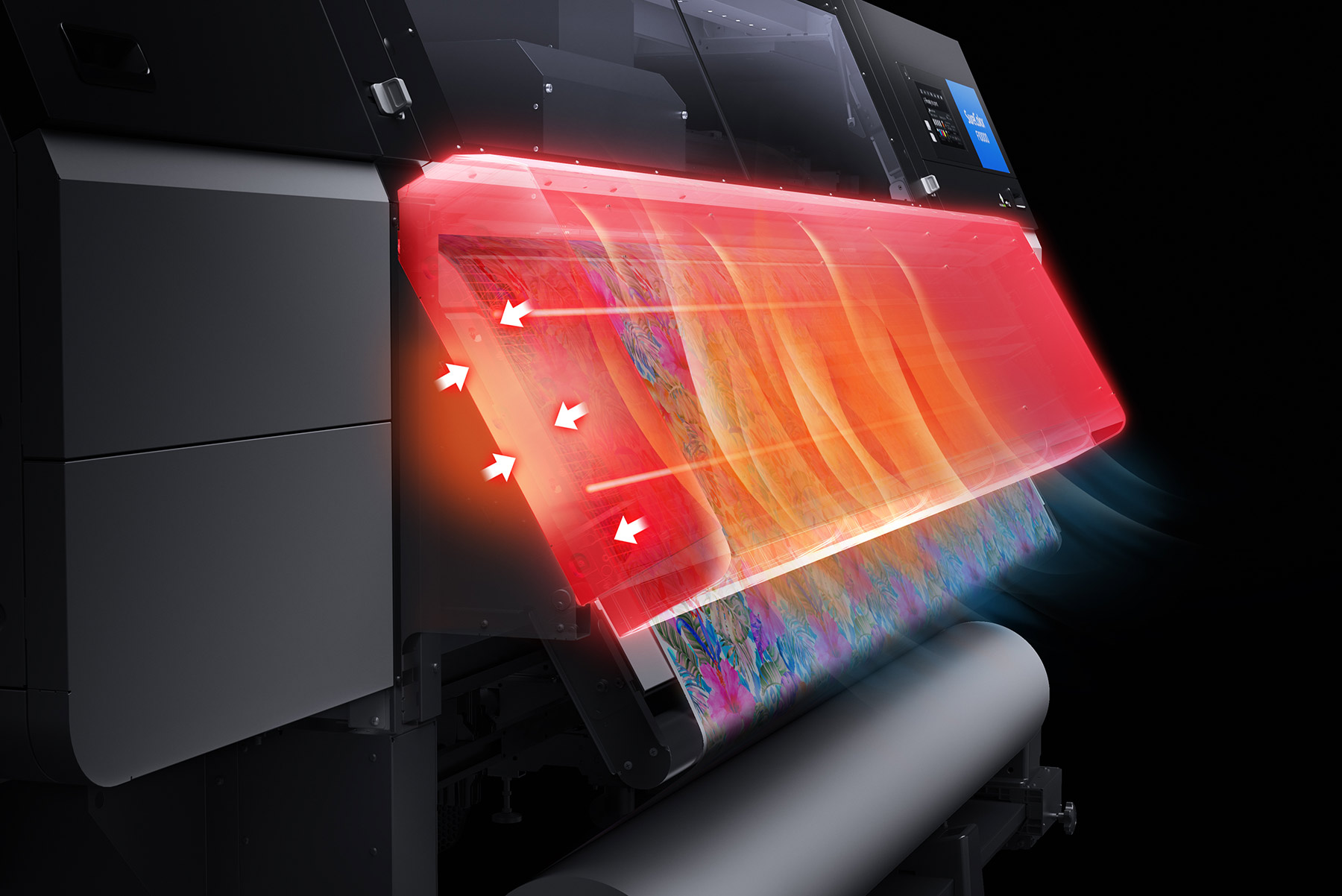

Integrated Dryer
The integrated dryer has a maximum heating temperature of 110°C, controlled effectively by both front and back heaters. The dryer system eliminates unwanted ink transfers and wrinkling issues during printing, empowering high-speed printing.

Jumbo Roll Option
To better facilitate users' needs for high-production capabilities, the F11030 now comes with a Jumbo Roll option. With the Jumbo Roll option, the maximum weight capacity has increased to 300kg and the maximum media diameter has increased to 500mm. Enabling users to print continuously while reducing the frequency to change out the media rolls.

Excellent Print Quality

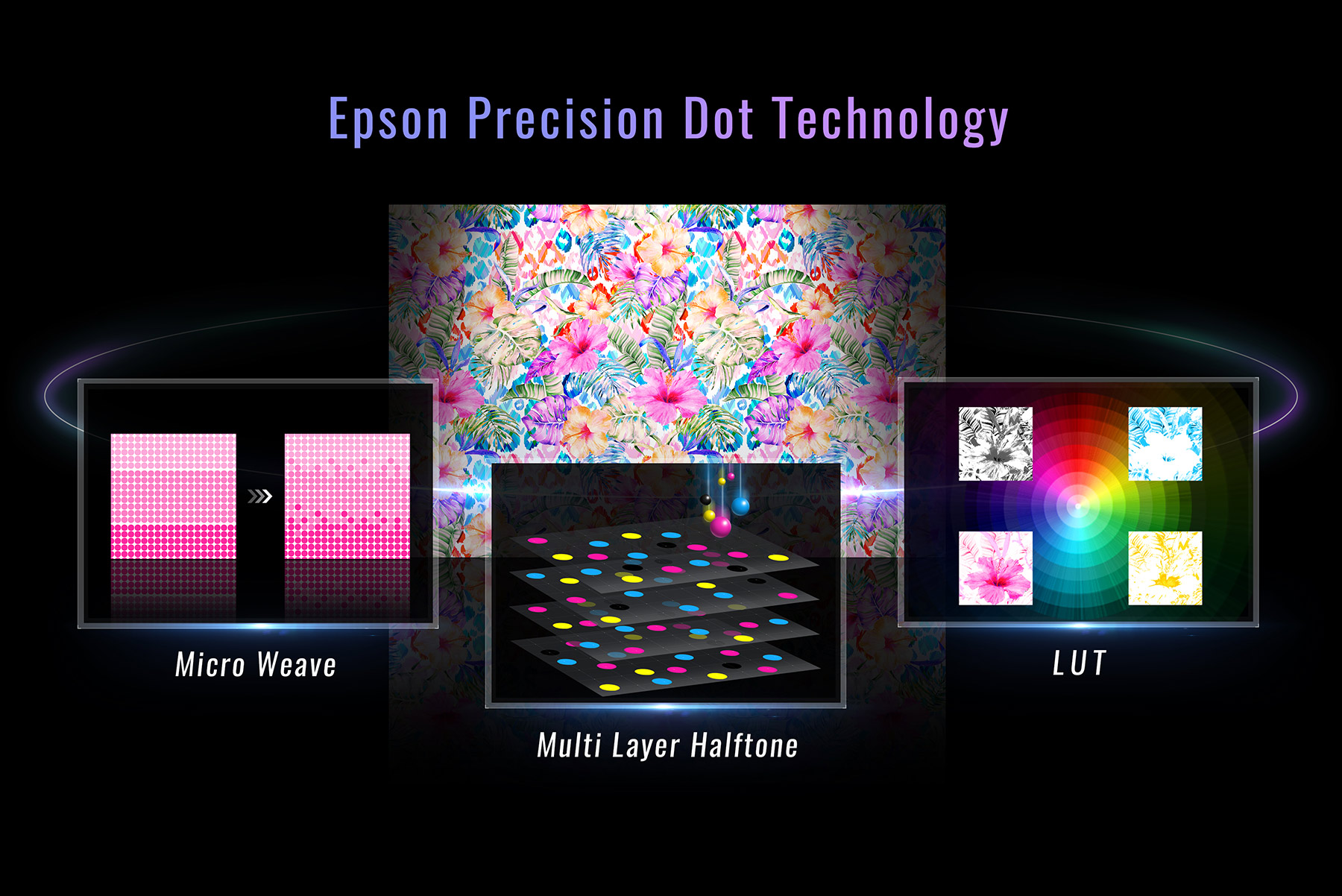

Epson Precision Dot Technology
Epson’s Precision Dot Technology consist of three different dedicated technologies, namely Micro Weave, Lookup Table (LUT) and Halftone. By optimising all three technologies, Epson’s SC-F11030 realises higher printing robustness against dot placement errors. When these three new technologies are harmonised, amazing image quality with reduced graininess and banding is achieved.

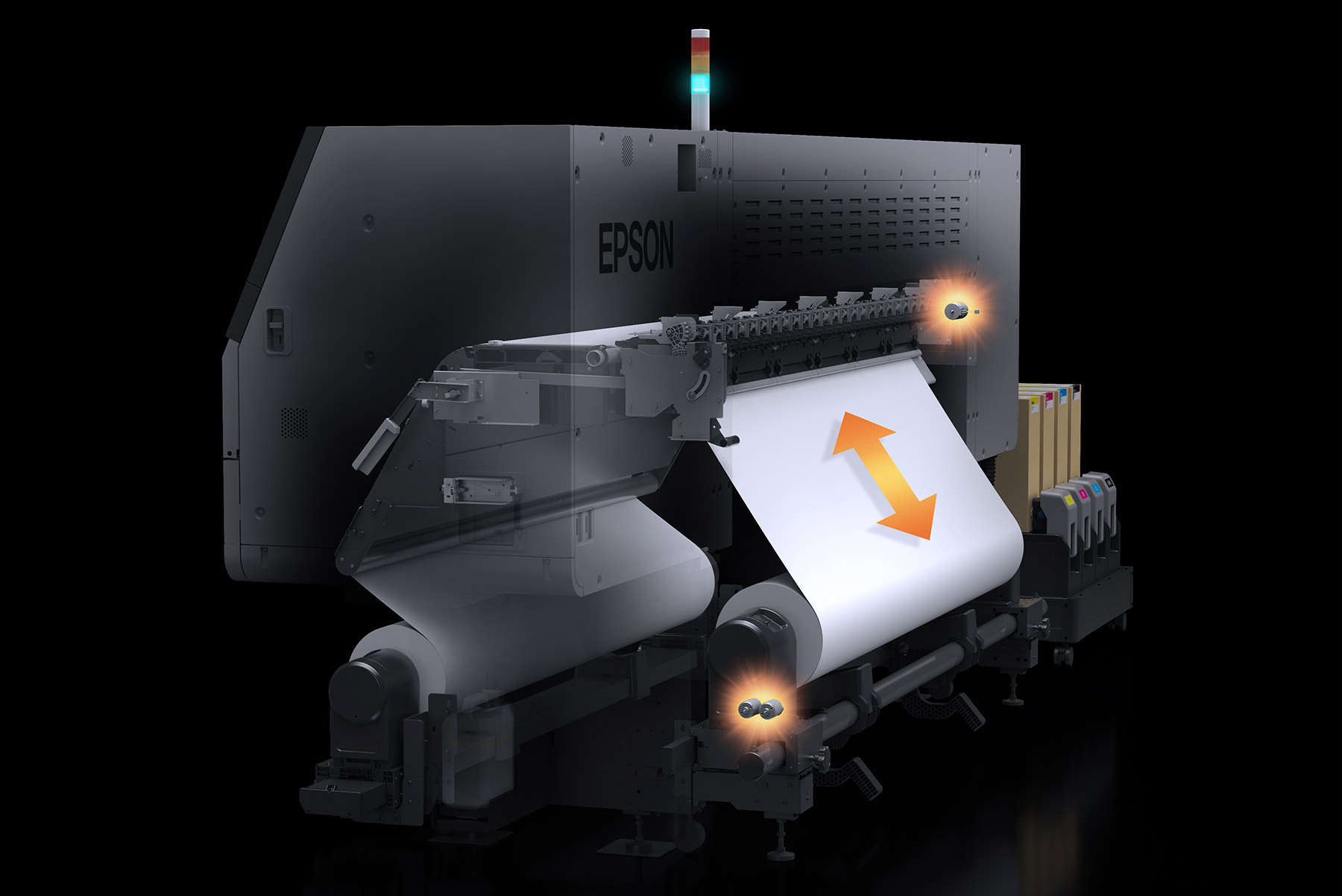

Advanced Auto Tension Control
High paper feeding accuracy contributes to high print quality. Epson’s SC-F11030 advanced auto tension control function enables accurate and stable media feeding across a variety of media. The media feed motor and roll drive motor synchronise to control paper feed accurately and stably. In this way, any negative effects caused by variance in media weight, roll core shape, diameter, tackiness and take-up reel operation status are reduced.

High Reliability and Uptime Maximisation

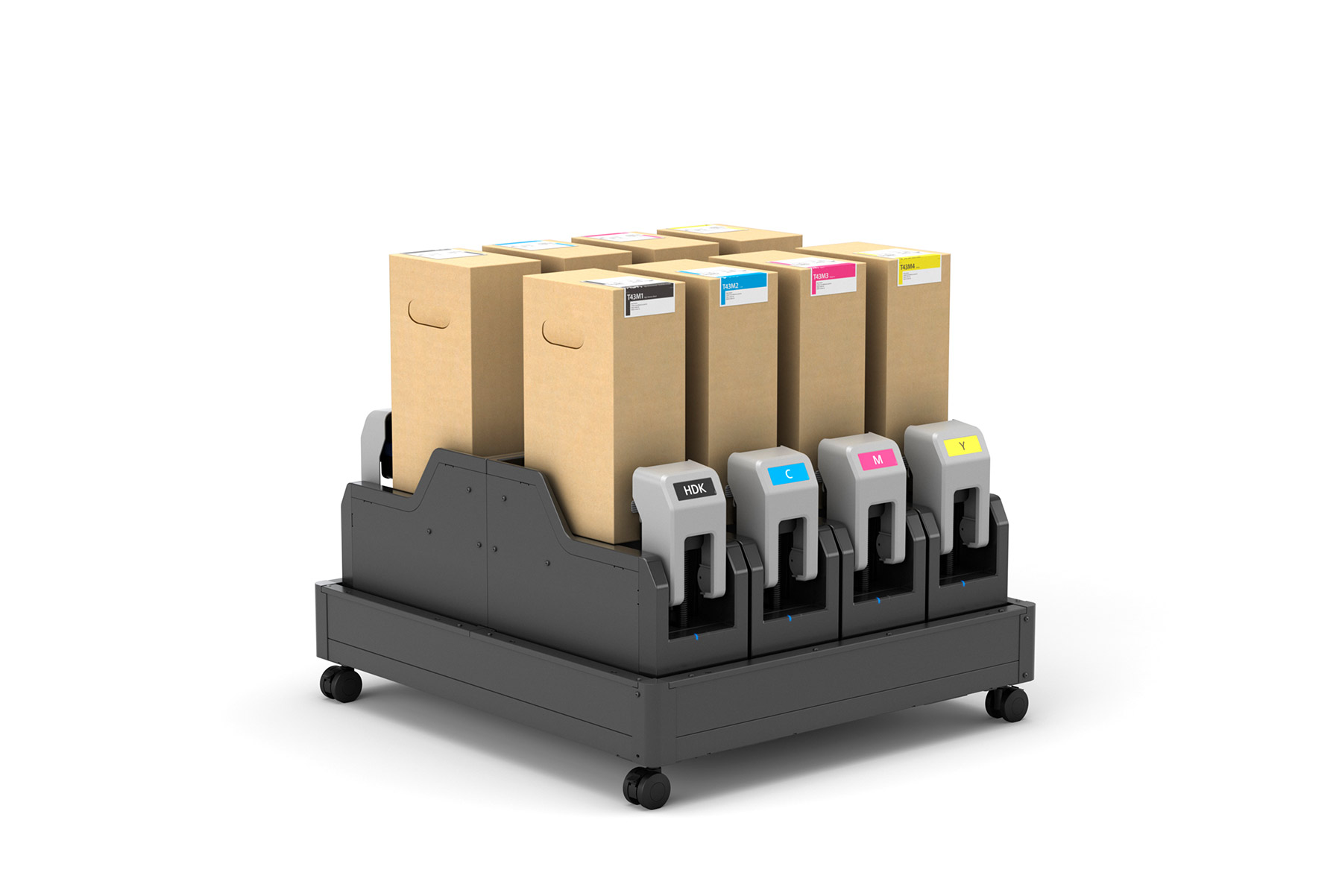

Bulk Ink Supply System
Bulk ink supply system with 10L ink packs and hot swap function empowers continuous operation. Should an ink pack run out during printing, Epson’s SC-F11030 automatically switches and activates the other same coloured ink pack for uninterrupted printing. The finished ink cartridge can be easily replaced with a new one, all while the printer is still operating.

User Self-Repair Function
Specific parts such as the printhead and anti-drying cap can be replaced by users themselves, resulting in faster printer recovery and minimisation of downtime. The User Self-Repair function is supported by 3 components - Easy self-replaceable parts, Printer Diagnosis System and Epson’s Remote Monitoring System.

Epson Cloud Solution PORT
Epson Cloud Solution PORT is a cloud-based solution for Epson end users. This software provides users with the status of the connected printers and alerts users if troubleshooting is required. The Production Monitor allows users to visualise printer operational status anytime, anywhere, from their PC or smart devices.



What's in the box:

  • Printer
  • Cleaning Kit
  • Signal Lamp
  • Waste Ink Bottle
  • Media Cleaner Brush
  • Presser Roller Spacer
  • Wiper Roll
  • Charging Unit
  • Dryer Unit
  • Media Guide Bar
  • Ink Supply Unit
  • Auto Take-up Reel Unit
  • Start-up Guide
  • Software CD-ROM
  • Epson Edge Print Pro CD-ROM (It may differ depend on ESC)

Printing:


Printing Technology: PrecisionCore inkjet technology
Variable-Sized Droplet TechnologyPrint Head: PrecisionCore MicroTFP printheadNozzle Configuration: 12,800 nozzlesMaximum Print Resolution: 1,200 x 1,200 dpi (With 300 x 300 dpi 16 Half Tone layers)Minimum Ink Droplet Size: 3.8 plPrint Speed: Maximum print speed of 255.1sqm/hMargin (Roll Paper): 7 mm (Right/Left) (14 mm when using Media Holding Plates)
5mm (Top/Bottom)

Ink:


Ink Type: Dye sublimation transfer ink
ULTRACHROME DS INKColours: Cyan, Magenta, Yellow, High Density BlackInk Capacity: 10,000mlInk Case: Ink supply unit

General:


Warranty: 1 year Self-Repair WarrantyMemory: 155 GBAcoustic Noise Level: Sound Pressure Level: Approx. 59 dB(A)Control Panel: 9" Touch PanelOptions: Take Up Media Holder, Take in Media Holder, Media Cleaner Brush, Presser Roller SpacerConsumables: Cleaning Kit, Wiper Roll, Waste Ink Bottle

Control Panel:


LCD Screen: 9.0 inch Touch Panel

Recommended System Requirements:


Win PC System Requirement: Windows 10/8.1/8/7(32/64bit)
CPU : Core 2 Duo 3.05GHz
Memory : 8GB or more
HDD(Free space during installation): 50GB or moreMac System Requirement: Macintosh Mac OS X(10.7 or later)
CPU : Multicore 3.0GHz
Memory : Memory more than 4GB
HDD : Free space more than 2GBWin PC System Requirements: CPU: Intel Corei3 3.0GHz or faster (released after April 2014)
Memory : Memory more than 8GB
HDD (Free space during installation): 50GB or moreMac System Requirements: CPU: Multicore 3.0GHz
Memory: Memory more than 4GB
HDD: Free space more than 2GB

Acoustic Noise Level:


Sound Pressure Level: Approx. 59 dB(With Standard Roll Unit & Standard Reel Unit)
TBD (With Jumbo Roll Unit & Standard Reel Unit)

Environmental Characteristics:


Temperature: Operating: 10°C - 35°C
Before Unpacking:-20℃ - 60℃
Case 40℃: Less than 1month
Case 60℃:Less than 120hours
After Unpacking(Before InkCharge):-20℃ - 40℃
Case 40℃: Less than 1monthHumidity: Operating: 20 - 80% (no condensation)
Storage: 5℃ - 85% (no condensation)

Media Handling:


Paper Path: Friction FeedMaximum Diameter / Weight: Max. diameter 250 mm / 60 Kg (Standard Roll)
Max. diameter 500 mm/ 300 Kg (Jumbo Roll)
Max. diameter 250 mm / 60 Kg (Standard Reel)Paper Width (Roll): 300 mm - 1,950 mm (Take-up reel support over than 914.4 mm)Paper Thickness (Roll): up to 1 mm

Dimensions and Weight:


Dimensions (W x D x H): With Standard Reel Unit: 4,607mm x 1,303mm x 1,886mm
With Jumbo Roll Unit: 4,607mm x 1,839mm x 1,886mmWeight: 736kg(with Standard Roll Unit & Standard Reel Unit)
864kg(with Jumbo Roll Unit & Standard Reel Unit)Dimensions: Printing: 4,607 x 1,303 x 1,886 mm (W x D x H)
Stowed: 4,607 x 1,303 x 1,886 mm (W x D x H)

Electrical Specifications:


Input Voltage: AC200-240V x 2
AC200-240V (Jumbo Roll Unit)Power Consumption: Operating: Approx. 3.9kW
Ready: Approx. 3.1kW
Sleep: Approx. 221W
Power Off (Stand by): Approx. 9.6WRated Current: 16A x 2
10A (Jumbo Roll Unit)

Utility Software:


Utility Software (Bundled in CD): Windows only:
Communication Driver
Installer Package
Software Updater
EpsonNet Print
EpsonNet Setup
EpsonNet Config SE
Manual PackageUtility Software (Web delivery): Windows only:
Web Installer
Epson Manual Launcher
Epson Edge Print Pro
Epson Edge Color

Windows / Mac:
Firmware Updater
Epson Edge Dashboard

Online Manual, Epson Video Manuals, User's Guide (Excerpt), User's Guide, Network Guide, Start-Up Guide

Fixing:


Heat Press Condition: Transfer condition: Heater Temperature ;200℃, Time 40 sec

Recommended Operating Temperature & Humidity:


Temperature: Operating: 10°C to 35°C
Storage (before unpacking): -20°C to 60°C 1 month at 40°C, 120 hours at 60°C
Storage (after unpacking): -20°C to 40°C 1 month at 40°CHumidity: Operating: 20 to 80% (no condensation)
Storage: 5 to 85% (no condensation)

Connectivity:


Memory: 155GBInterface: USB 3.0
1000Base-TPrinter Language: ESC/P raster

Operating System Requirements:


Operating System: Windows 8.1 x64
Windows 10 x64
Windows 11
Macintosh Mac OS X(10.7 or later)
