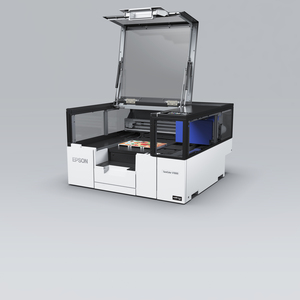

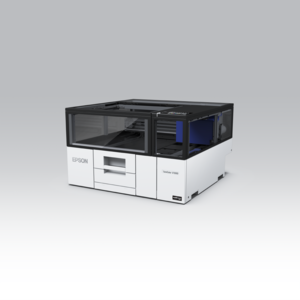

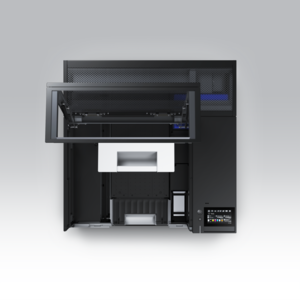

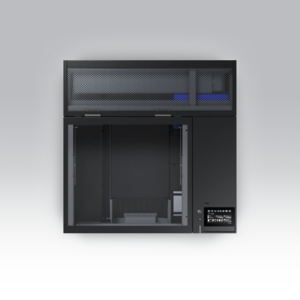

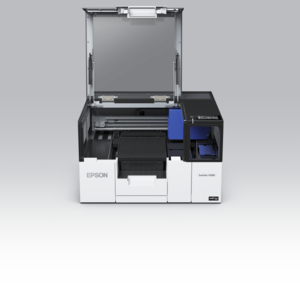

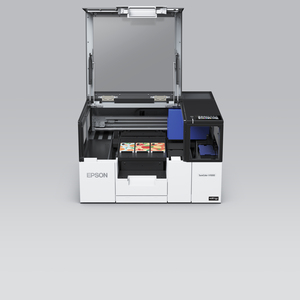

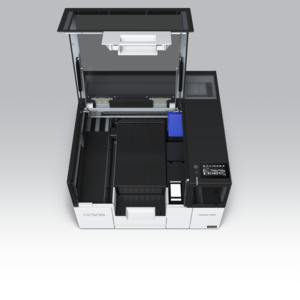

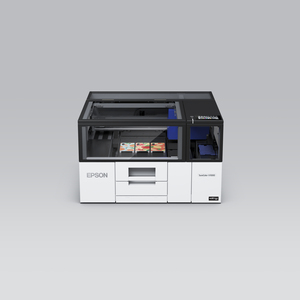

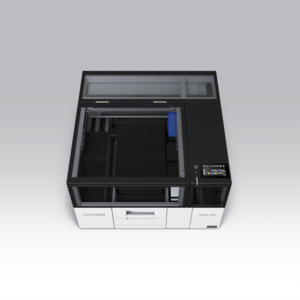

Epson SureColor SC-V1030

AMPLIFY CREATIVITY WITH CUSTOMISABLE NOVELTY GOODS.

A compact and versatile A4 desktop UV printer, the Epson SureColor SC-V1030 is designed for the competitive niche market of customisable products and is the perfect printer for businesses prioritising versatility and performance in their A4 desktop UV printing needs. The printer's extensive substrate compatibility, ranging from wood, plastic, acrylic to stainless steel, consistently delivers high-quality prints, providing new opportunities for businesses.

      • A4 desktop UV printer with a compact footprint
      • No-ink-contact design offers an easy and safe printer maintenance
      • Precise images, crisp text, and thin lines on every print
      • Extensive substrate compatibility, including wood and stainless steel
      • Accepts up to 70mm media thickness
      • No-ink contact design offers an easy and safe printer maintenance



With the versatility and performance of the SureColor SC-V1030, expand your business opportunities to cater to the growing market for customised novelty gifts.


PRECISE PRINT QUALITY

Print precise images, crisp text and thin lines on a wide range of compatible substrates. With the Epson UltraChrome UV inks, achieve vibrant outputs in every print.


FLEXIBLE PLACEMENT

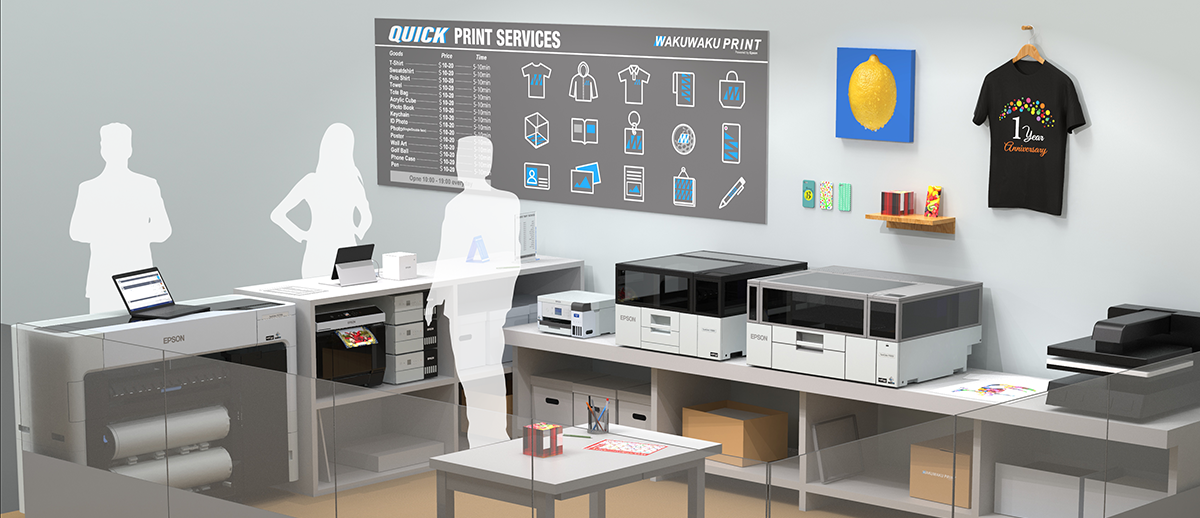

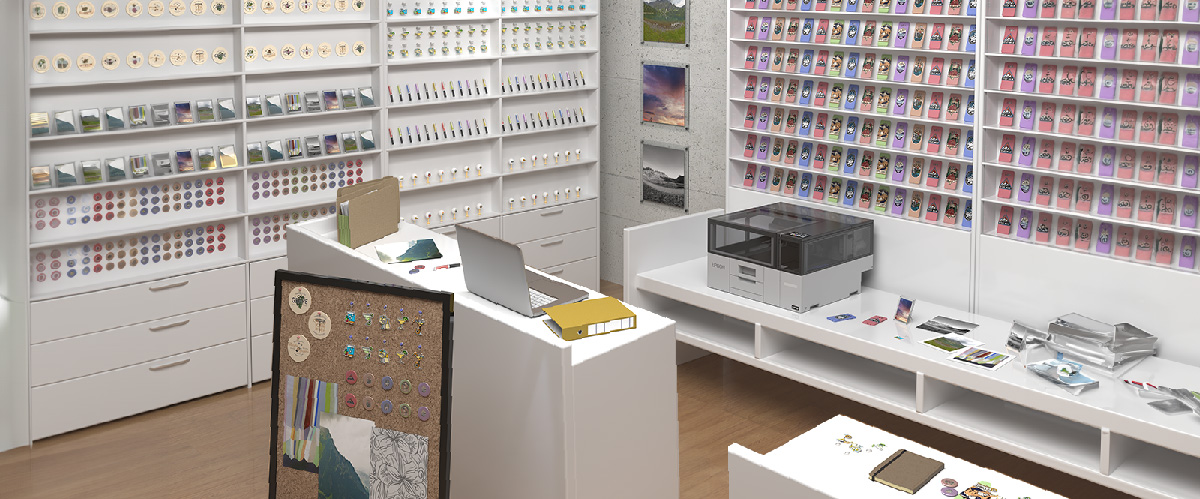

With its compact design, the printer can be placed on desks or workbenches, making monitoring of print jobs easy. The front operation design streamlines maintenance in tight spaces and allows convenient wire-free placement at the rear. To maximise space usage, multiple printers can be placed side-by-side.


SMART OPERATION

Auto Height Adjustment
The platen will automatically adapt its height to accommodate substrates that's up to 70mm, ensuring optimal printing performance.

Wide Gap Function
Improves clarity of text and images on three-dimensional substrates such as golf balls, pens and phone cases.


PRINTS ON A VARIETY OF SUBSTRATES

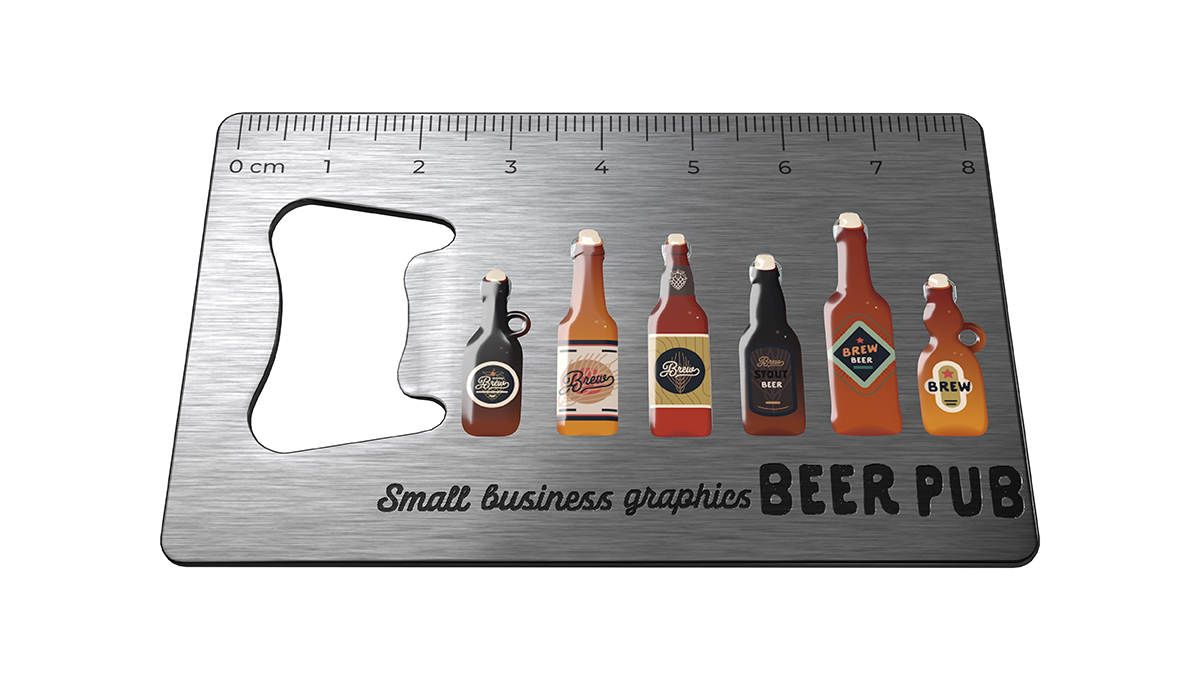

Print directly onto a large variety of substrates including wood, stainless steel, acrylic, plastics, ceramic, and more. Businesses can provide high-value novelty goods that are unique and personalised, offering customised products that are not commonly found.


The automatic printhead cleaning feature, coupled with a wiper unit, effectively cleans and deposits cured UV ink into the tank, thereby reducing ink exposure.


EASY MAINTENANCE AND OPERATION

Safe Maintenance
The automatic printhead cleaning function, coupled with a wiper unit, effectively cleans and deposits cured UV ink into the tank, thereby minimising contact with ink.

Internal Air Circulation
With two built-in air filters that reduces odour, the printer is safe for operation in a closed environment.

Large Display Panel
Effortlessly manage and oversee your print jobs, monitor ink levels, and perform printhead cleaning using the LED display panel. The panel also provides convenient visibility in low-light environments.

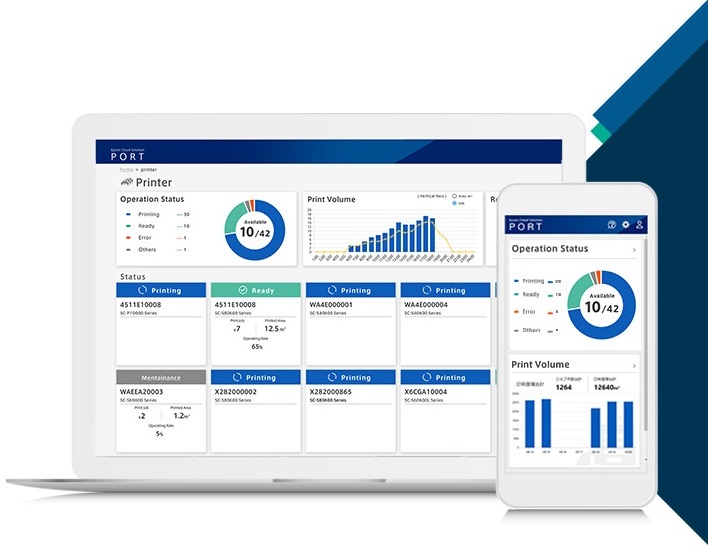

EPSON CLOUD SOLUTION PORT

Comprehensive printer fleet management software offering a secure real-time view of production, equipment use, and service details, enhancing efficiency and optimising Epson printing workflows.

Printing:

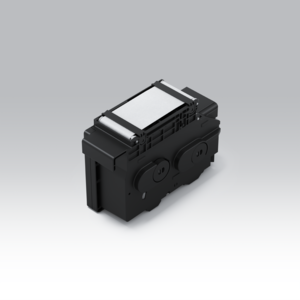

Printing Technology: MicroPiezo Inkjet Technology
Variable-Sized Droplet TechnologyNozzle Configuration: 1,440 nozzles (180 nozzles x 8 lines x 1 head)
CMYK: 180 nozzles for each colour
Vr/Wh: 180 nozzles x 2 linesMaximum Resolution: 1,440 x 1,440 dpiMinimum Ink Droplet Volume: 5.5plPrinthead: MicroPiezo Printhead

Ink:


Ink Type: UV Curable InkColours: Black, Cyan, Magenta, Yellow, White, VarnishInk Capacity: 140mlInk Brand Name: Epson UltraChrome UV InkInk Case: Ink Supply Unit

Printer Details:


Printer Language: ESC/P raster

Paper Handling:


Maximum Printing Area: 212 x 299 mmMaximum Media Size: 210 x 297 mmMaximum Media Thickness: 70 mmMaximum Media Weight: 3 kg

Control Panel:


Colour & Size: 4.3” Touch Screen

Recommended System Requirements:


Win PC System Requirement: Windows 7 (32/64) or later
For Epson Edge Print:
OS: Windows® 11, Windows® 10 (64bit), Windows® 8.1 (64bit)
CPU: Intel® CoreTM i5 3.0GHz or more
Memory: 8GB or more free space
HDD: 50GB or more free space
Monitor: 1,280 x 1,024 or moreMac System Requirement: Mac OS 10.6.8 or laterMac OS 10.6.8 or later

Acoustic Noise Level:


Sound Pressure Level: Approx. 60dbSound Power Level: 7.5B or less

Dimensions and Weight:


Dimensions (W x D x H): Printing: 699 x 426 (Cover Closed) / 942 (Cover Opened) x 699 mm
Stowed: 699 x 426 x 699 mmWeight: 59 kg

Electrical Specifications:


Rated Current: AC 100 - 240V, 6.4 - 3.8AVoltage: AC 220 - 240 V, 50/60Hz

Utility Software:


Utility Software (Web delivery): Web Installer, Firmware Update, Epson Manual Launcher, Epson Edge Print PRO, Epson Edge Dashboard, LFP Accounting Tool, Epson Cloud Solution PORT for mobile, Epson Remote Monitoring System, Epson Cloud Solution PORT

Environmental Conditions:


Temperature: 15ºC – 30ºC
-20ºC – 40ºCHumidity: 20% – 80% (No Condensation)
5% – 85% (No Condensation)

Print Specification:


Print Speed: 720 x 720 dpi, 12 Pass (Colour): 0.89m2 /h
1,440 x 720 dpi, 16 Pass (White): 0.65m2 /hCuring Method: LED-UV TypeGraphic Mode: Production (Colour): 0.68m2/h ; Quality (Colour): 0.5m2/hText Mode: Production (Colour): 0.68m2

CERTIFICATIONS:


Safety: USA (UL), Canada (CSA), Mexico (NOM), Argentina, EU (CE), UK (UKCA), Germany (GS), Ukraine, Morocco, India (BIS), Singapore (Consumer Protection [Safety Requirements] Registration Scheme), Cambodia, Hong Kong (EPSR)Safety/Electromagnetic : USA (FCC), Canada (ICES), EU (CE), UK (UKCA), Ukraine, Morocco, Australia (RCM), Korea (Korean MSIP Regulation), Japan (VCCI, Harmonics Regulation)

Connectivity:


Memory: 1GBInterface: SuperSpeed USB (Compatible with the USB 3.0 Specification), 100BASE-TX / 1000BASE-T / IEEE802.11b/g/n/az/ac
