For Home Projectors Home Theatre Epson EH-LS650B

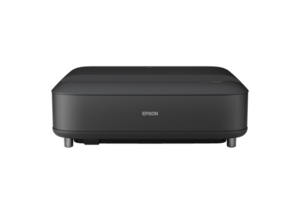

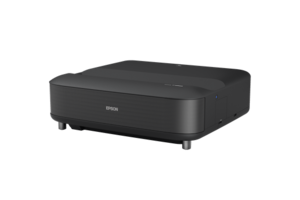

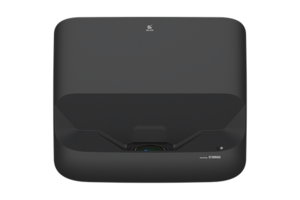

Epson EpiqVision Ultra EH-LS650B 4K PRO-UHD Laser Projection TV

Your Movie Night Companion.

Whether you're watching live sports, gaming on the latest generation of consoles, or streaming your favorite movie, the Epson EpiqVision Ultra EH-LS650B delivers an epic big screen experience that will simply amaze you. With 4K PRO-UHD1 resolution, a screen size of up to 120",  Android TVTM3 function, and sound by YAMAHA, the EH-LS650B opens up your possibilities to create the ultimate home cinematic setting.

      • Stunning 4K PRO-UHD1 picture
      • Immersive display
      • New Ultra-Short Throw Laser-Array Technology
      • Powered by Android TVTM3
      • Best-in-Class Colour Brightness
      • 3,600 lumens of colour and white brightness4
      • 10-bit HDR Colour Processing



Where to Buy

Cutting-edge Ultra Short-Throw Laser Projection

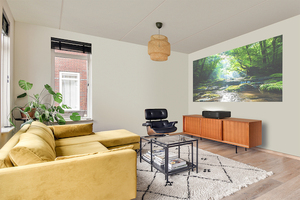

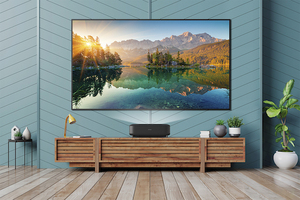

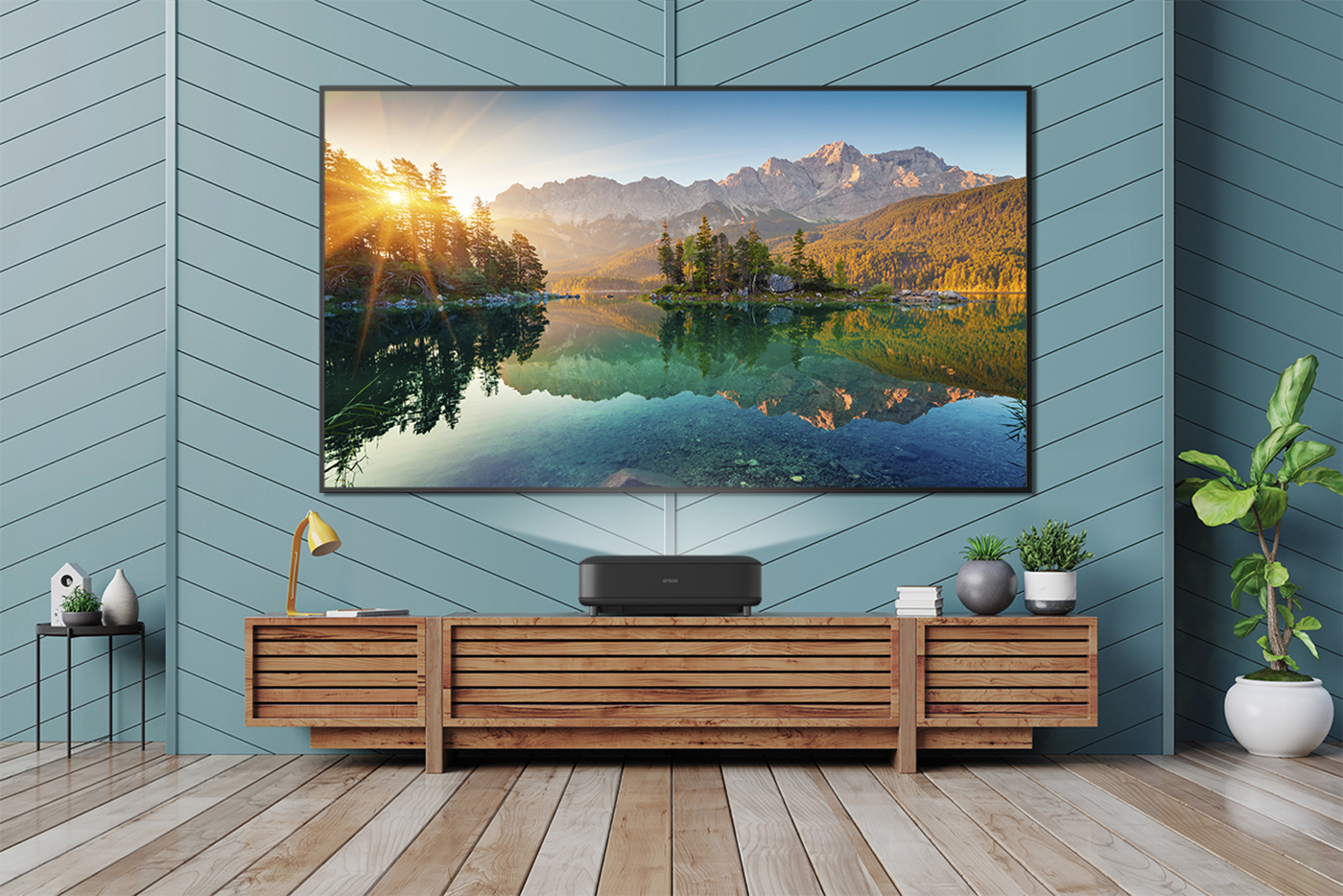

Epson designed an all-new multi-element precision glass ultra short-throw lens technology, allowing for a modern case design that drastically reduces the throw distance. This allows the EpiqVision Ultra EH-LS650B to beautifully sit on normal audio video cabinets and other furniture while displaying a sharp picture of up to 120".

An Exceptional Home Theatre Experience
When the lights are off, the visual performance of the EpiqVision Ultra EH-LS650B paired with the optional ELPSC35 or ELPSC36 Ambient Light Rejecting Screen is simply epic. The picture quality and colour performance is exceptional especially with HDR content. You may never go to the theatre again. With a modern, thin bezel design, optical enhancement technology, and 16:9 aspect ratio, the ALR screen is designed for 4K content1. And the result? An incredibly bright, colourful, and sharp picture in virtually any lighting environment.

Our YAMAHA 2.1ch speaker system is also built into the EH-LS650B, alongside the punching metal design, to create an improved, almost 3D-like sound effect, enhancing the overall sound system's output.

4K PRO-UHD Resolution1
Advanced pixel-shifting technology precisely controls three individual high-definition LCD chips to produce an exceptionally sharp 4K experience without sacrificing brightness. This is how the 4K projection experience was meant to be.

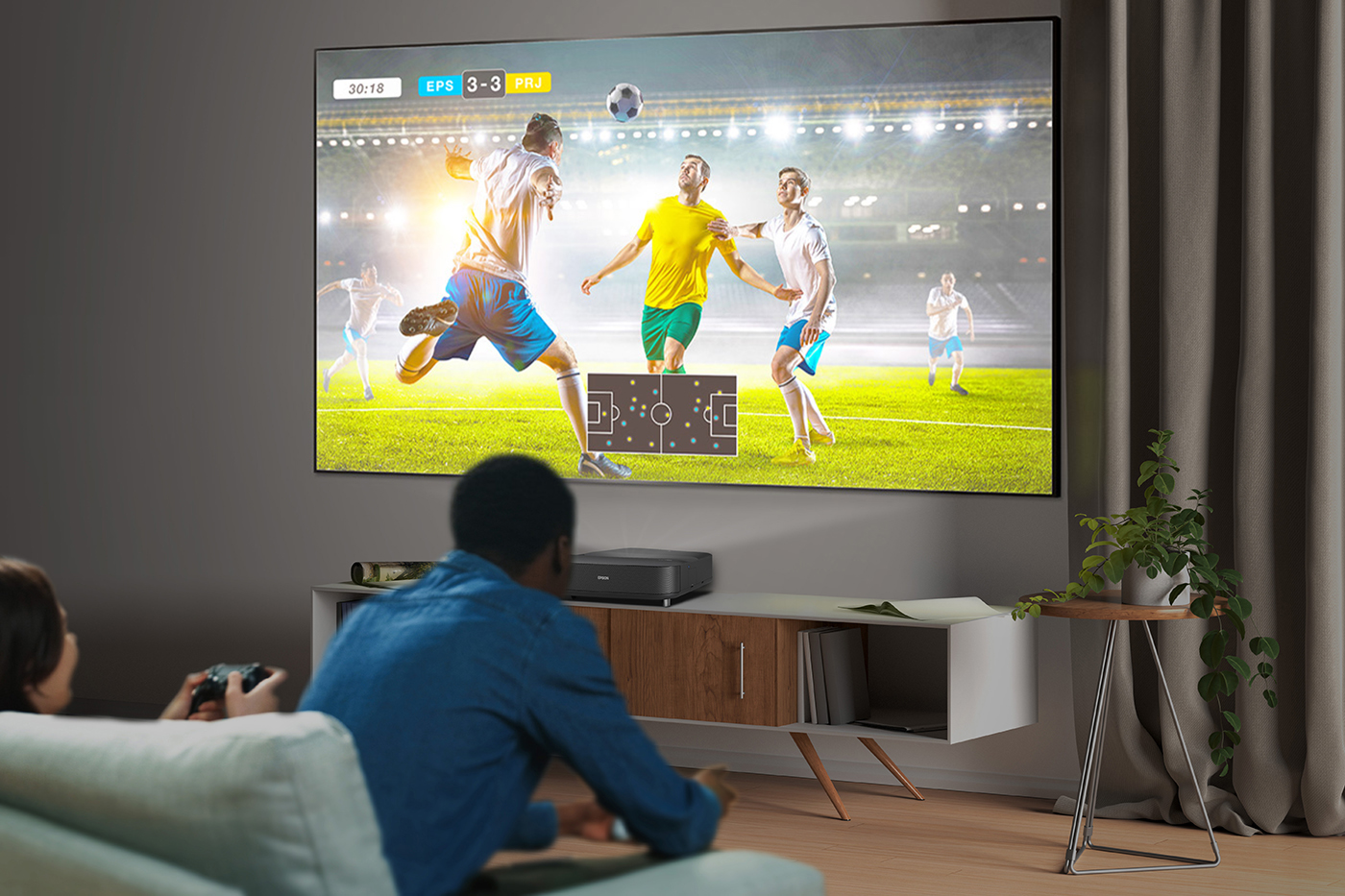

Awesome for Gaming and Entertainment
If you're a serious console or PC gamer, the EpiqVision Ultra EH-LS650B paired with the optional ELPSC35 or ELPSC36 Ambient Light Rejecting Screen will take your gaming experience to a new level of immersion. Imagine gaming on a 120" 4K PRO-UHD1 with HDR2 display with input lag times below 20ms, of up to 240Hz. The EpiqVision Ultra EH-LS650B comes with an Android TVTM3 operating system and in-built ChromecastTM, along with a simple-to-use remote including voice search with built-in Google Assistant. Watch all your favorite streaming channels including YouTube, Disney+ and more. The experience is truly epic.

The Latest Epson Technology
True 3LCD projection technology takes full advantage of the projectors' brightness to produce exceptional colour performance without any distracting rainbowing or other colour brightness4 issues seen with other projection technologies.

Advanced digital picture processing converts real-time 10-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking, and other compression artifacts from the final visual performance. This powerful processing technology faithfully reproduces the source material the way it was intended to be shown.

10-Bit HDR2 colour processing accepts 100% of the HDR source. When combined with the extreme brightness of 3,600 lumens4, HDR content is faithfully reproduced for an exceptional visual performance.

What's in the box:

  • Quick Start Guide

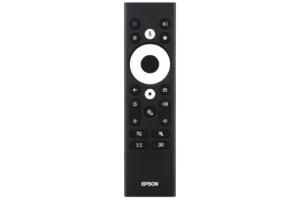

  • Remote Control with 2x AAA batteries
  • 1.8m Power Cable (Black)
  • Warranty Card

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts:


LCD: 0.62 inch (C2 Fine)Light Source: Type: Laser diode
Life (Normal / Eco): 20,000 hoursAspect Ratio: 16:9Resolution: On-Screen (Maximum): 4K1 Native Resolution: 1080PProjection Lens: Type: No optical zoom / Focus: manual
F-Number: 1.6
Focal Length: 3.7 mm
Throw Ratio (Wide to Tele): 0.25-0.62
Zoom Ratio: 1 - 2.5 (Digital Zoom)

Connectivity:

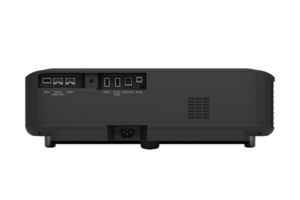

Digital Input: HDMI: 2 (SMF, HDMI2=eARC) (HDCP2.3)Audio Output: Yes (Bluetooth, S/PDIF)Wireless: Built-In: Yes (Smart media player function)USB Direct: Type A: 3 (For Wireless LAN, firmware Update, copy OSD settings)
Type Mini-B: 1 (For firmware update, copy OSD settings)

Contrast Ratio:


Contrast Ratio: Over 2,500,000:1

Screen Size (Projected Distance):


Zoom : Wide: 60" to 120" [32.5 to 70.3 cm]Zoom : Tele: N/AStandard Size: 77" screen 43.3cm

Geometric Correction:


Quick Corner: YesProjection Orientation: Desktop

Image Enhancement:


Image Preset Mode: YesSuper Resolution: YesDetail Enhancement: N/A4K Enhancement: N/AAspect Mode: Yes (Normal / Full / Zoom)Frame Interpolation: Yes (Off / Low / Normal / High)Noise Reduction: Yes

Start-Up Period:


Start-Up Period: Less than 7 seconds
Warm-up period: 30 seconds

Operating Temperature:


Operating Temperature: 5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft)
(20% - 80% Humidity, No Condensation)

Operating Altitude:


Operating Altitude: 0 m to 3,048 m <0 ft to 10,000 ft>
Over 1,500m / 4,921 ft, with High Altitude mode

Power:


Power Consumption: Laser Diode On/Off: 264 W / 178 W
Standby On/Off: 2.0W / 0.5WPower Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Internal Speaker(s):


Sound Output: YAMAHA 2.1ch Satelite x2, Woofer x1, 20W

Weight:


Weight: Approx. 7.4 kg

Air Filter:


Maintenance Cycle: 12,000H

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 400 x 467 x 133 mm

Wireless Specifications (Smart Media Player Function):


Wireless LAN: Wi-Fi 5Bluetooth: Bluetooth 5.0 Class 1 (2.4GHz)Frequency Used: IEEE 802.11a (5GHz) , IEEE 802.11b (2.4GHz), IEEE 802.11g (2.4GHz), IEEE 802.11n (2.4GHz and 5GHz), IEEE 802.11ac (5GHz)Supported OS: Android OSSupported VOD Platform: Android TVVideo Output Resolution: Up to 3,840 x 2,160 60fps at 4:4:4

Streaming Media Player:


Supported Operating System: Android 11Audio: MP3, AAC, WMA, RM, FLAC, AC-3, E-AC-3

Brightness:


White Light Output (Normal/Eco): 3,600 lm / 1,800 lmColour Light Output: 3,600 lm

Cool Down Period:


Cool Down Period: Instant Off

Fan Noise:


Fan Noise (Normal / Eco): 36dB / 23dB

Notes:

1 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.

2 HDR performance available with select third-party devices.

3 Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Availability of services varies by country and language. Requires wireless network connection of 5 Mbps or faster. Some apps require paid subscriptions.

4 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
