Epson ColorWorks C8050 On-Demand Colour Label Printer

Streamline Your Industrial Labeling for Maximum Efficiency and Quality.

Transform your industrial labeling process with unmatched efficiency and quality. Maximise efficiency in industrial label printing with Epson ColorWorks CW-C8050. Engineered for high-volume applications, it offers exceptional quality using PrecisionCore^® Heat-Free technology and UltraChrome DL Pigment inks, producing sharp images and text at fast speeds. With high-yield ink capacity and remote management via Epson Cloud Solution PORT^®, you will boost productivity while minimising maintenance and energy costs.

High-Quality Colour Label Printing
Enhanced Performance Features
Streamlined Connectivity

Find Ink Support

Overview

Superior Print Quality
The CW-C8050 printer offers an impressive resolution of 600x1200dpi, making it perfect for barcode scanning and fine text. High print consistency is achieved through the Epson PrecisionCore printhead and UltraChrome DL Pigment inks. With nozzle verification technology, you can maintain optimal print quality even if nozzles become clogged. Additionally, spot colour management and ICC profiling ensure precise colour matching for outstanding results.

Versatile Media Options
It provides an adaptable selection of media and inks tailored to meet diverse customer needs, utilising high-durability inks for consistently exceptional results. It accommodates both matte and high gloss media, as well as films and synthetic materials. Thanks to its adjustable platen gap, you can effortlessly print on thicker media up to 0.6mm.

Flexible Integration Options
This printer prioritises convenience with USB 3.0, high-speed Ethernet, optional Wi-Fi, and an I/O port for easy setup. It integrates smoothly with legacy systems using the ESC/Label command, ensuring compatibility. It also supports popular middleware and includes Device Type and ABAP drivers for straightforward SAP Direct Printing. Enjoy cloud printing flexibility without a PC, and benefit from simple maintenance with one-side access. The new CoverPlus option offers extra peace of mind for Industrial and High-Productivity Value customers.

High-Capacity Ink Pack System
The printer features 480ml ink pouches, the largest volume in its class. This capacity enables extended print runs without interruption, minimising downtime and maximising productivity.

Improved Remote Management and Serviceability
Achieve next-level productivity with Epson software solutions.

Specifications

Connectivity:

USB: USB 3.0 (one port), USB 2.0 (one port)Wi-Fi: Optional Wi-Fi dongle available (OT-WL06)Ethernet: 100Base-T/100Base-TX/10Base-TGeneral-Purpose I/O Port: D-Sub 25Print Utilities and Remote Management Tools: EpsonNet SetupManager, EpsonNet Config SE, Epson Device Admin,
Epson Deployment Tool, PrinterSetting, Colour Tone Matching Assistant,
USB Printer Class Device Replacement, Epson Firmware Updater,
Epson Cloud Solution PORT^*3 Production Monitor, WebConfigDirect Command-Based Printing: Zebra^® ZPL II® native language support, plus command extensions, to allow for colourisation of data; ESC/Label color command language; SAP^® Direct Printing

Ink:

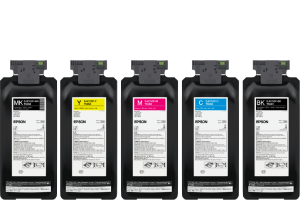

Ink Type: UltraChrome DL SJIC52P Pigment InkColours: Black (Gloss or Matte Black Options), Cyan, Magenta, YellowInk Pack Configuration: Four (4) individual ink packsInk Pack Capacity: 480 ml each pack^*2

Acoustic Noise:

Acoustic Noise: Approx. 57 dbEMI: FCC Class A, ICES-003 Class A

Display:

Display: 2.7” Colour LCD

Environmental Conditions:

Temperature: Operating: 5°C to 35°C / Storage: -15°C to 40°C,
Up to 120 H; Matte Black Ink: -10°C to 40°CHumidity: Operating: 20% – 80% RH (No Condensation)

Electrical Specifications:

Rated Voltage: 100 V – 240 VRated Frequency: 50 Hz – 60 HzPower Consumption: Operating: Approx. 83.0 kW; Standby: Approx. 3.3 W; Power Off: Approx. 0.4 W

Print:

Printhead: PrecisionCore Printhead, permanentPrinting Technology: PrecisionCore Line Inkjet TechnologyMaximum Print Resolution: 600 x 1,200 dpiMaximum Print Speed^*1: Up to 300 mm per second (11.8”/sec)Colour Adjustment: Epson Preferred Colour, Epson Standard, Epson Vivid ColourMedia Dispense Type: Auto Cutter (scissor type), up to 1.5 million cutsPaper-Feeding Mechanism Life: 500 km

Media:

Supported Media Types: Die-Cut Label, Full-Page Label, Continuous Label, TagSupported Media Constructions: Plain Paper, Textured Paper, Matte Paper, Synthetic,
Glossy Paper, Glossy Film, High Glossy PaperDie-cut Label Gap: 3 mm – 6 mm (0.12” – 0.24”)Gap Sensor Position: Adjustable; 3 mm – 56 mm (0.12” – 2.20”)
from left side; pitch: 1 mm (0.04”)Maximum Print Width: 108 mm (4.25”)Black Mark Sensor Position: Fixed position; approximately 12.4 mm (0.49”) from leftBlack Mark Wdith: 19 mm (0.75”) or more from paper edgeBlack Mark Length: 4 mm – 25.4 mm (0.16” to 1.0”) with 4 mm (0.16”) or more
of white space around the black markMedia Width (Min. – Max.): Internal Roll Media : 25.4 mm – 112 mm (1.0” – 4.40”)
External Roll Media, Fanfold : 50 mm – 112 mm (1.97” – 4.40”)Media Length (Min. – Max.): 8 mm – 1,016 mm (0.31” – 40”)Media Thickness (Min. – Max.): 0.084 mm – 0.600 mm (3.30 mils – 23.62 mils)Internal Roll Media: Media Core Inner Diameter: 76.2 mm (3.0”)
Media Maximum Outer Diameter: 203.2 mm (8.0”)

Supported Operating System:

Supported Operating System: Windows^® 11, Windows 10 (32-bit/64-bit, Windows 8.1 (32-bit/64-bit),
Windows Server^® 2022, Windows Server 2019, Windows Server 2016,
Windows Server 201, Windows Server 2012 R2, OS X^® 10.9.5 or later
MacOS^® 10.12 or later, CentOS^® 7 (x86_64), Ubuntu 20.04 (x86_64)

Printer Dimensions (W x D x H):

Printer Dimensions (W x D x H): 620 x 392 x 420 mm / 24.4 x 15.4 x 16.5 inch

Printer Weight:

Printer Weight: Approx. 35 kg

Packaging Dimensions (W x D x H):

Packaging Dimensions (W x D x H): 818 x 576 x 616 mm / 32.2 x 22.7 x 24.3 inch

Packaging Weight:

Packaging Weight: Approx. 43 kg

Eco Features:

Eco Features: RoHS compliant, Actively uses recycled plastic parts
Reduces waste materials by using Replaceable Ink Pack System (RIPS)
